Automatically check weigh your bags, packages, bottles, cartons and cases.

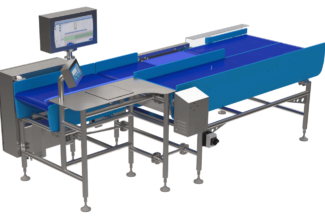

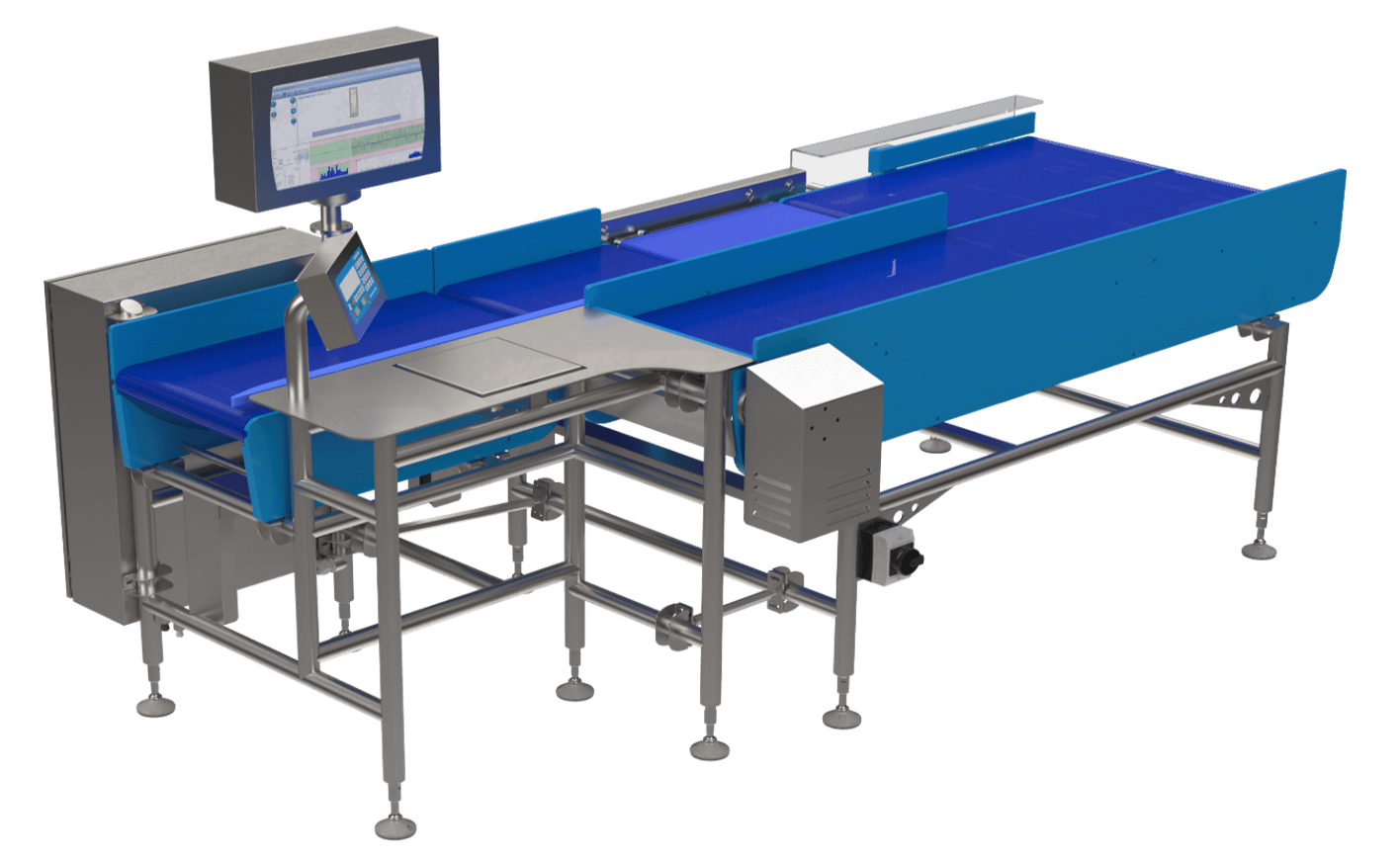

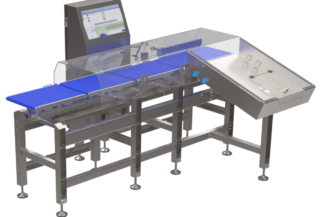

The industry-leading WeightCheQ™ series of check weighers offers speed, accuracy and easy operation. These machines can be used to check the weight of a variety of packages including bags, bottles, cartons and cases and are easily integrated into existing packaging systems where automatic bagging, container filling, flow wrapping and case filling is performed.
| Parts | Description |
|---|---|
| Material of Frame | 304 Stainless steel |
| Weighing range (g) | 0 – 250 |
| Best accuracy (g) | ±0.01 |
Features
• Electromagnetic force restoration (EMFR) weigh cell
• Complete stainless steel/aluminum construction
• Heavy-duty frame structure
• Heavy-duty CNC machined foot pads
• High precision load cell
• Modular frame design
• Product accumulation drawer
• Food grade belts
• Anti-static Lexan safety guard
• Rejection system
• No changeover parts required
• Multi-color warning light with buzzer
• No compressed air required
HIGHEST ACCURACY TOLERANCES

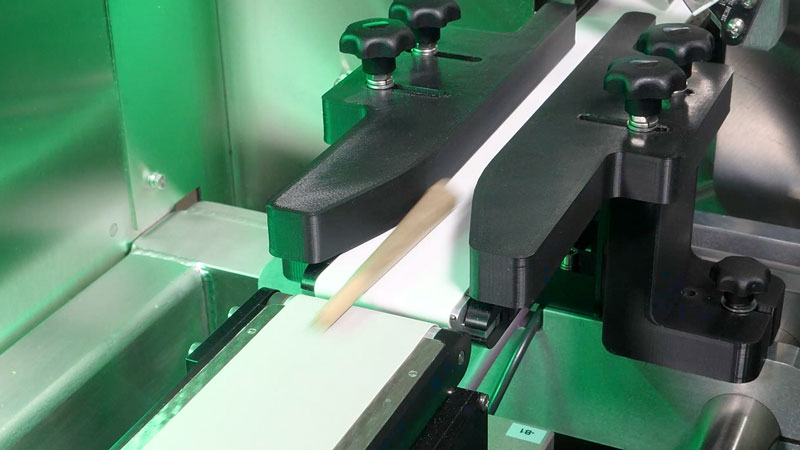

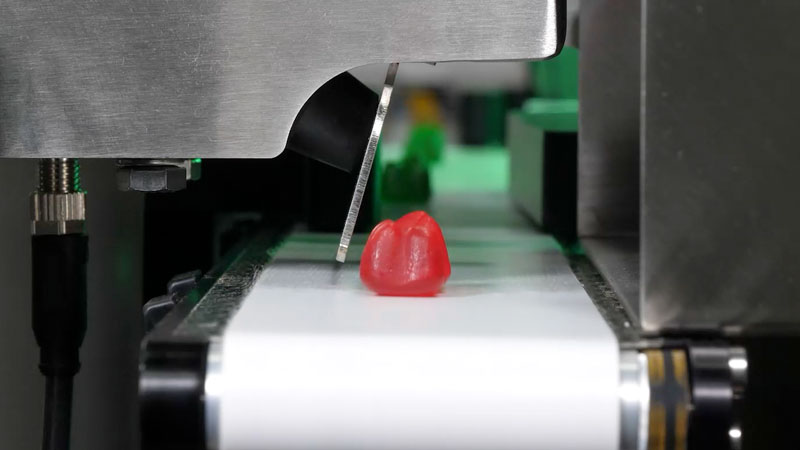

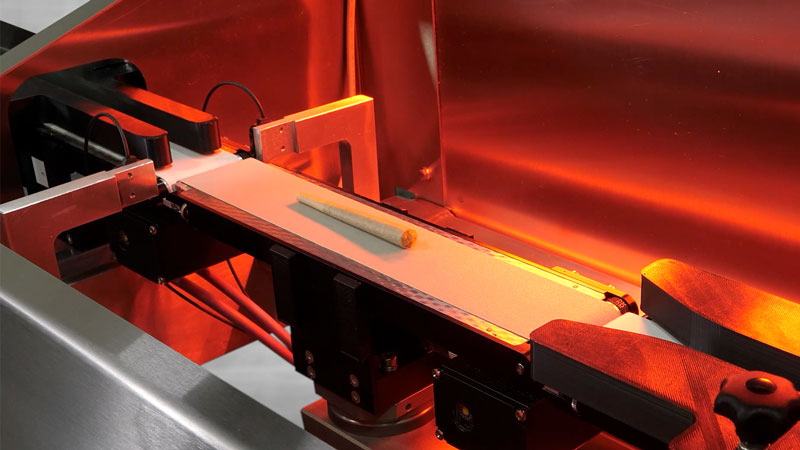

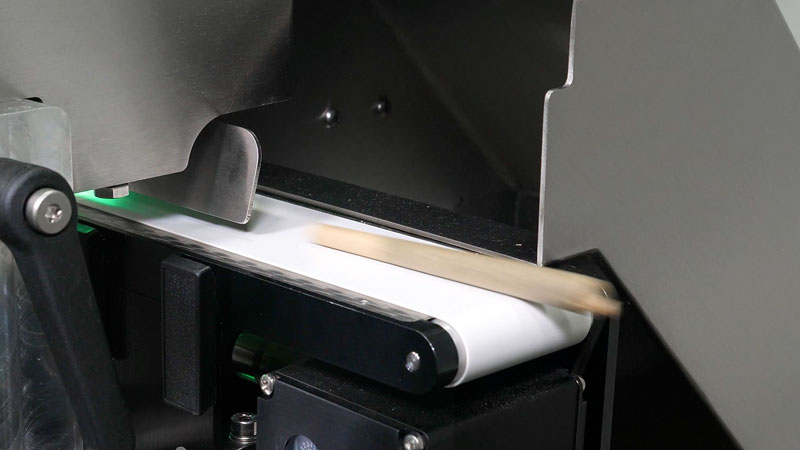

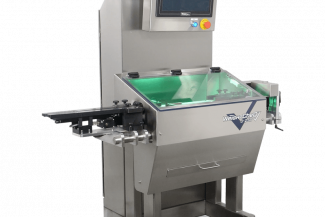

WeightCheQ 0-250
WeightCheQ 3-100
| Parts | Description |
|---|---|
| Material of Frame | 304 Stainless steel |
| Weighing range (g) | 3 – 100 |
| Minimum scale (g) | 0.1 |
| Best accuracy (g) | ±0.2 |
| Max throughput (pcs/min) | 150 |
| Width of weighing belt (mm) | 220 |
| Length of weighing belt (mm) | 450 |
| Height of conveyor belt (mm) | 780-900 |
| Direction of throughput | From left to right when facing control panel |
| Alarm mode | Audible and visual |
| Reject device | Default: Air pusher Option: Flipper |
| Power | 240V 1 Phase |
| Working environments | Free of obvious vibration and air flow |
| Parts | Description |
|---|---|
| Material of Frame | 304 Stainless steel |
| Weighing range (g) | 10 – 4000 |
| Minimum scale (g) | 0.1 |
| Best accuracy (g) | ±1 |
| Max throughput (pcs/min) | 90 |
| Width of weighing belt (mm) | 300 |
| Length of weighing belt (mm) | 550 |
| Height of conveyor belt (mm) | 780-900 |
| Direction of throughput | From left to right when facing control panel |
| Alarm mode | Audible and visual |
| Reject device | Default: Air pusher Option: Flipper |
| Power | 240V 1 Phase |
| Working environments | Free of obvious vibration and air flow |
WeightCheQ 10-4000
