FLOW WRAPPING

From our compact and affordable SleekWrapperTM40 to the sophisticated SleekWrapper 65, we offer automatic flow wrapping machines to fit your budget, production rate and floorplan.

How does a flow wrapper work?

The process starts with a cylindrical roll of film. The flow wrapping machine will transfer the film from the roll and through to the forming collar (sometimes referred to as tube or plow). At the same time, a conveyor has lined up individual products for wrapping. The film is fed through the collar and the product is surrounded with film, sealed and the film is then cut. The finished individual product is then gathered downstream to be bagged or cartoned prior to boxing and palletizing.

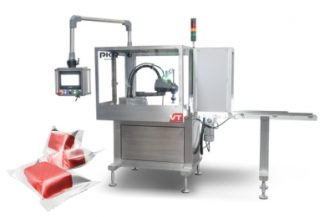

Robotic Loading

We can custom engineer an automatic loading system for your flow wrapping process using one of our PKR pick and place systems.

We can design your system using either our Delta, Gantry or SCARA robot platform and precisely place your product for loading onto the conveyor of one of our flow wrappers or onto your existing flow wrapping machine.

This robotic loading system eliminates the traditional repetitive motion stations, reducing overhead and risky labor practices while increasing efficiencies and throughput.

Robotic Loading Video Library

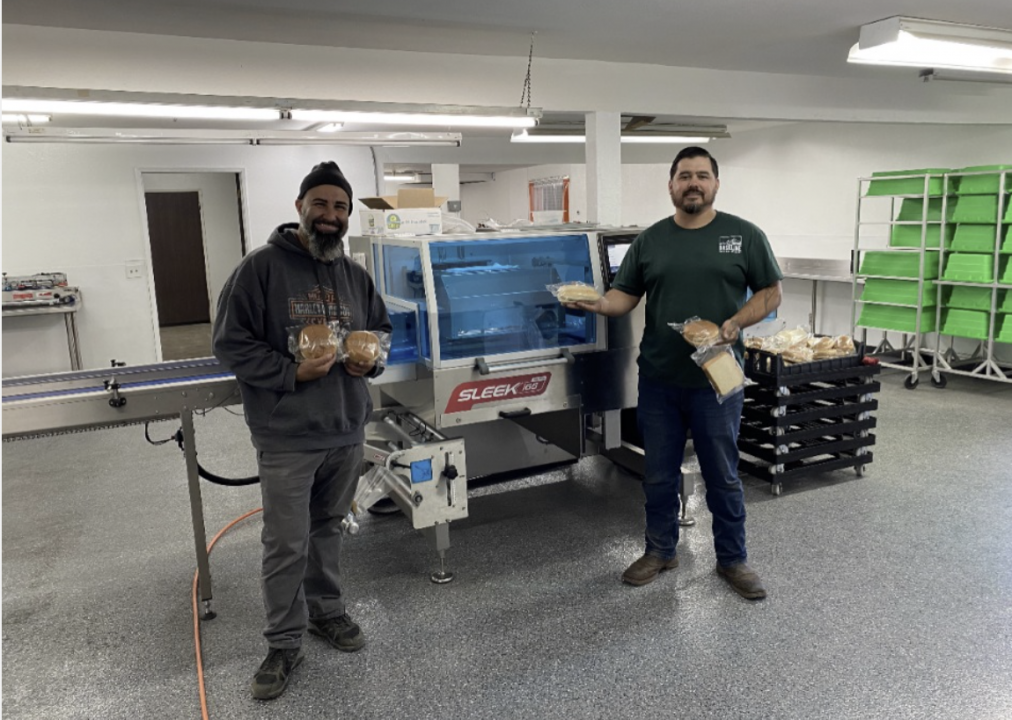

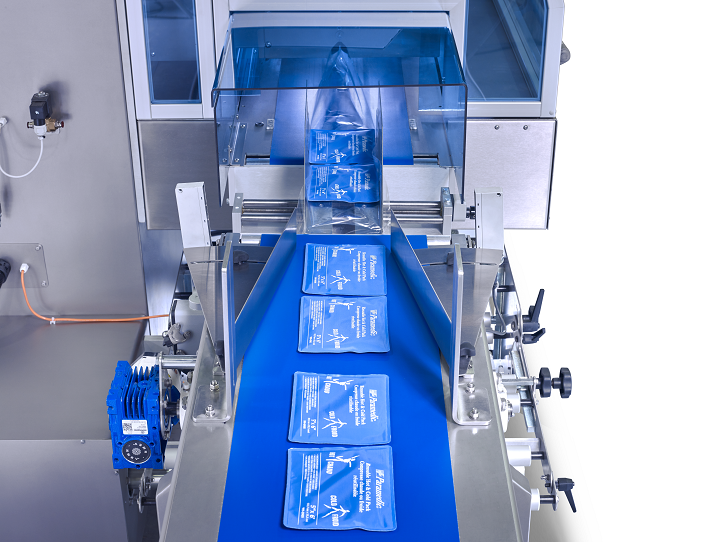

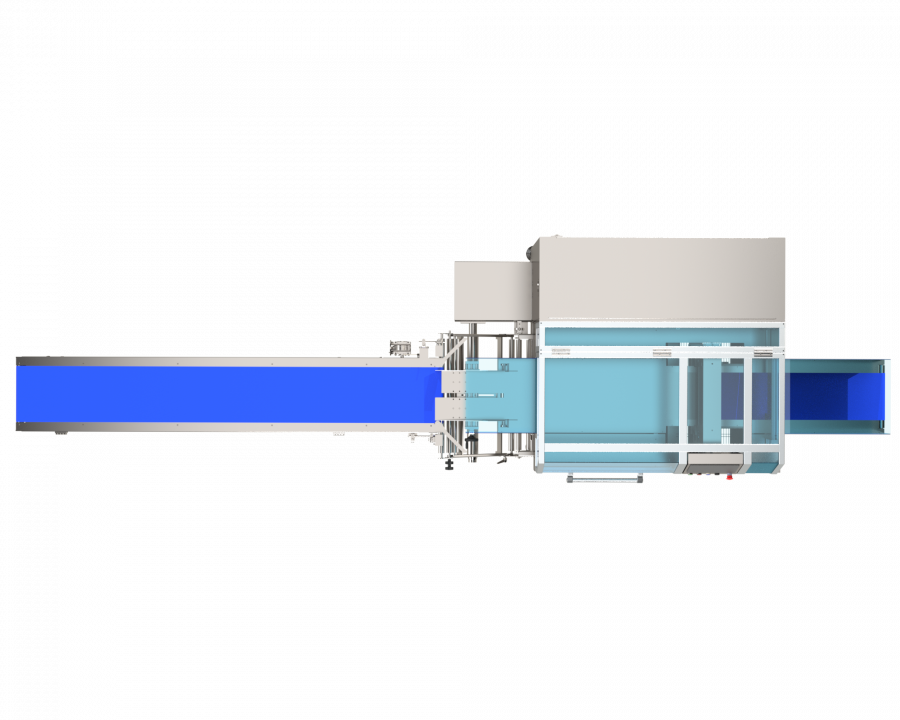

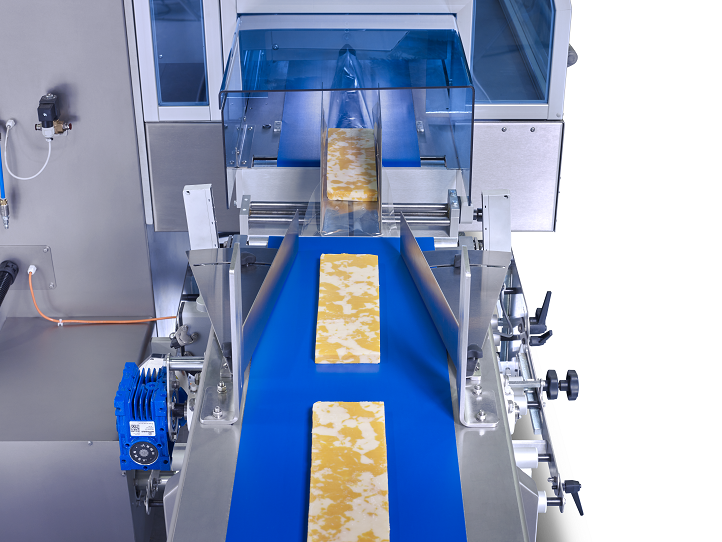

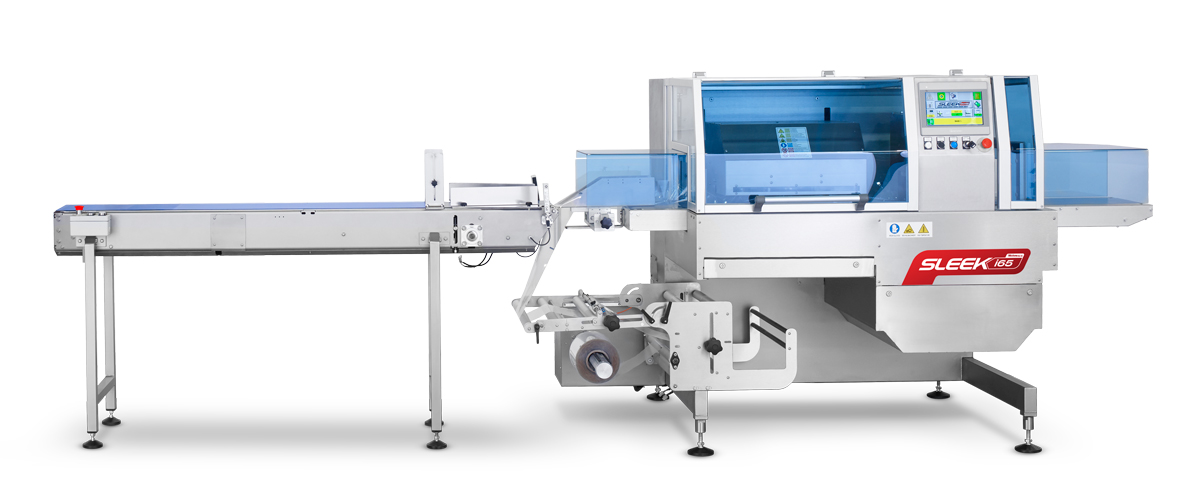

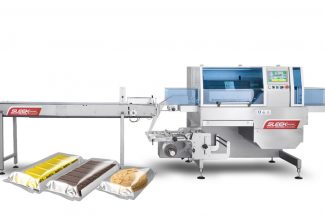

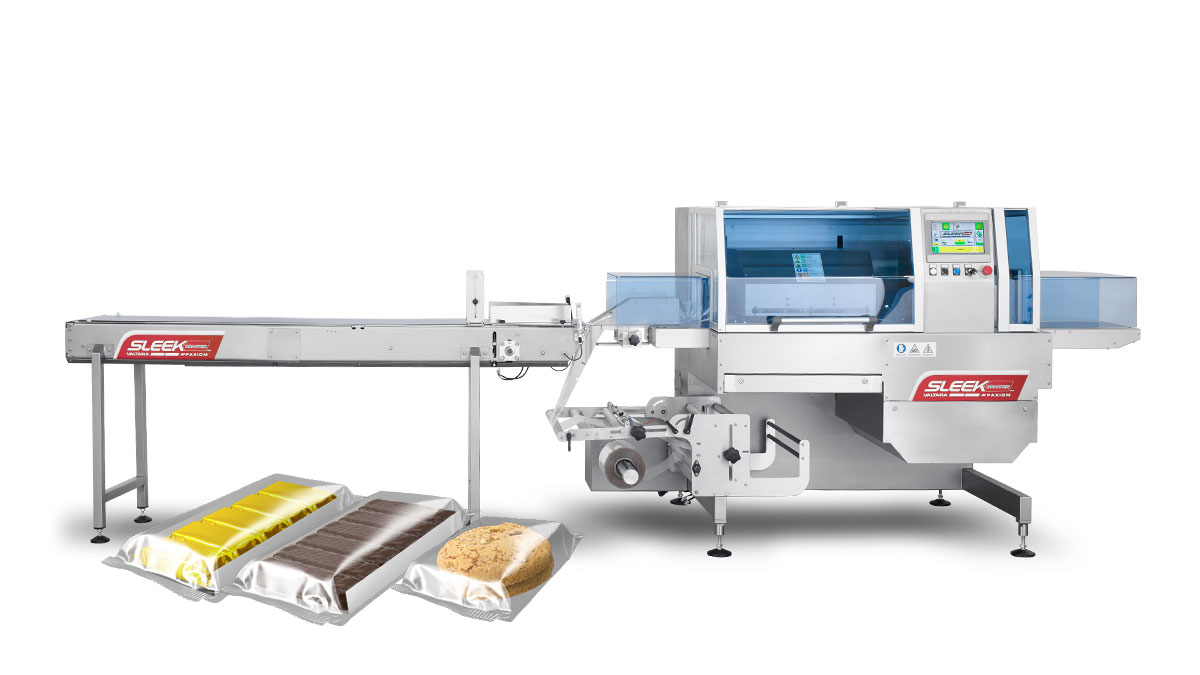

SLEEK I-65 INVERTED

The high-performance SleekWrapper Inverted horizontal wrapping machine is designed with reliability, simplicity and serviceability in mind. Built for a 24/7 environment, this machine will produce up to 60 packages per minute with a maximum web width of 25.5 inches or 650mm.

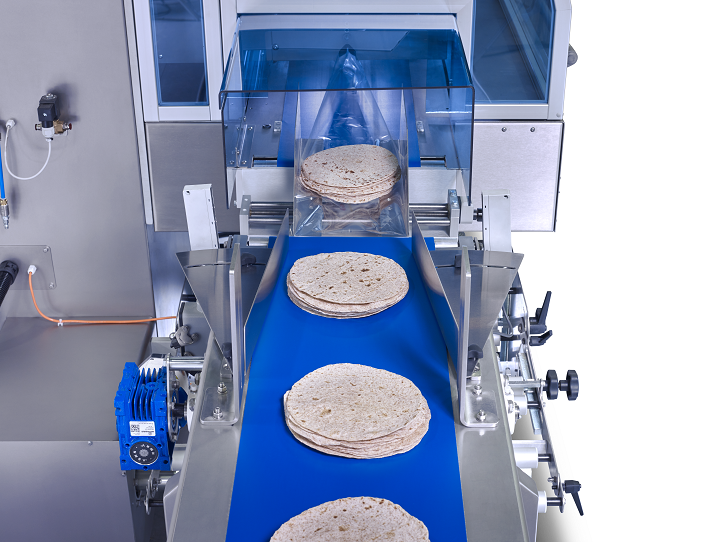

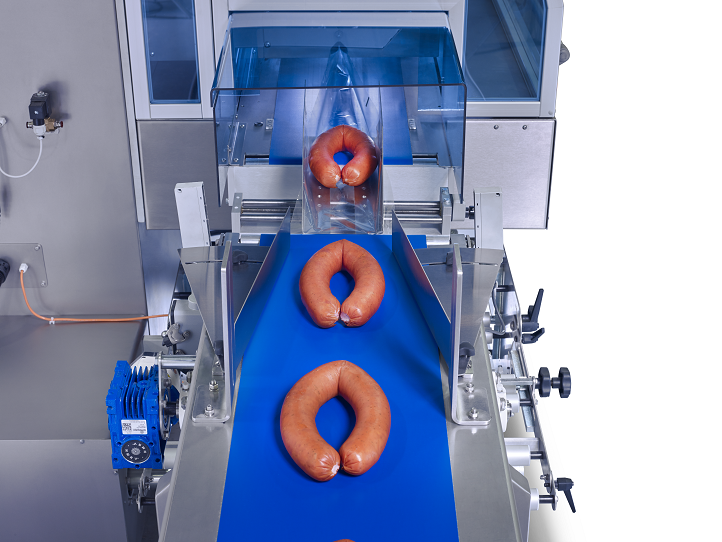

It is ideal for soft or sticky products, multipacks and other products that are difficult to push with the typical lug chain design found on conventional bottom seal flow wrappers. The film is fed from below the product and hard-to-handle products are securely carried on top of the packaging film from the former through to the cutting head.

The Sleek Inverted features quick, easy changeover and adjustment that minimizes product and film waste and reduces maintenance costs. Five servo-driven motors assure precise positioning with smooth acceleration and deceleration.

This machine comes standard with stainless steel frame construction, user-friendly color touchscreen, automatic open/close rotary fin wheel assembly, rotary seal jaws with jam detecting logic and the ability to preprogram and store product settings.

Sleek I-65 Video Library

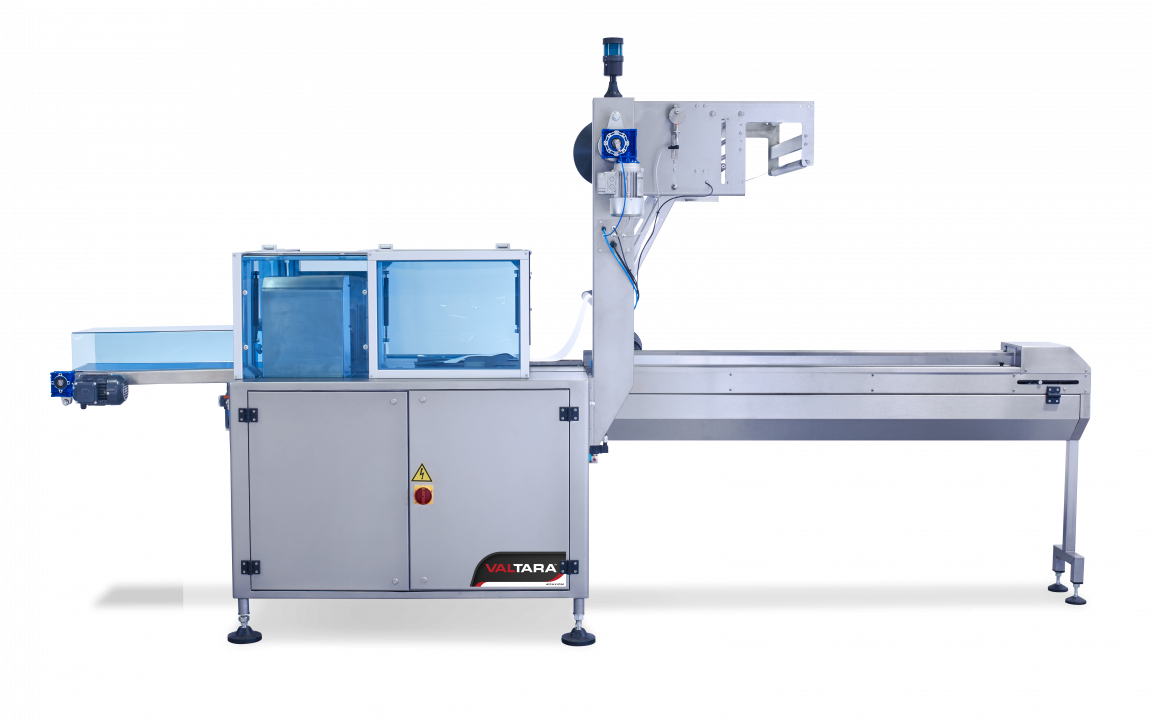

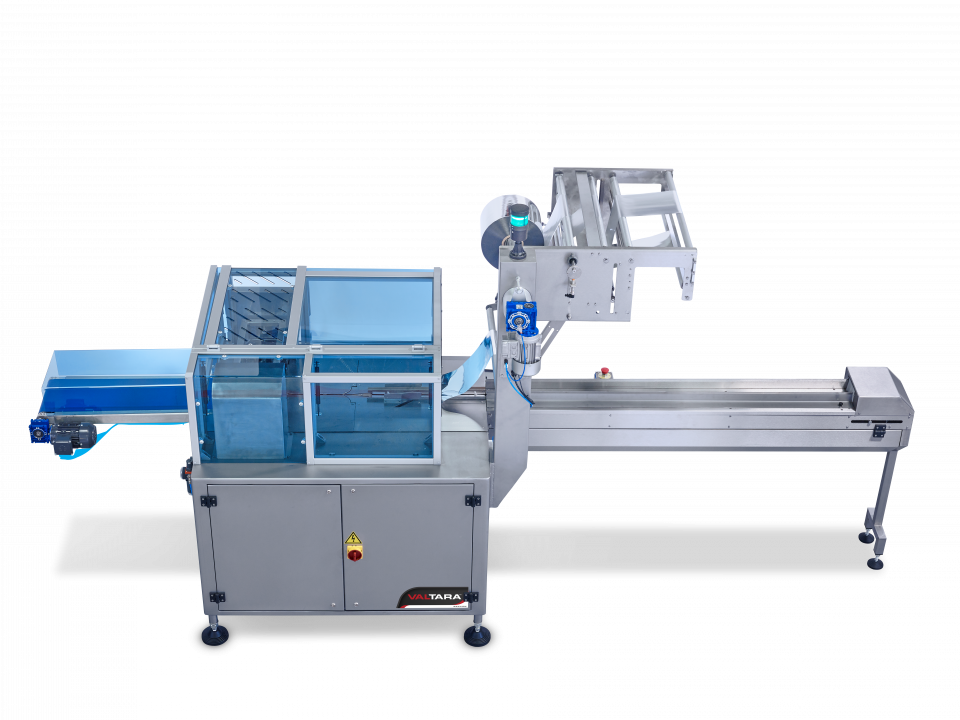

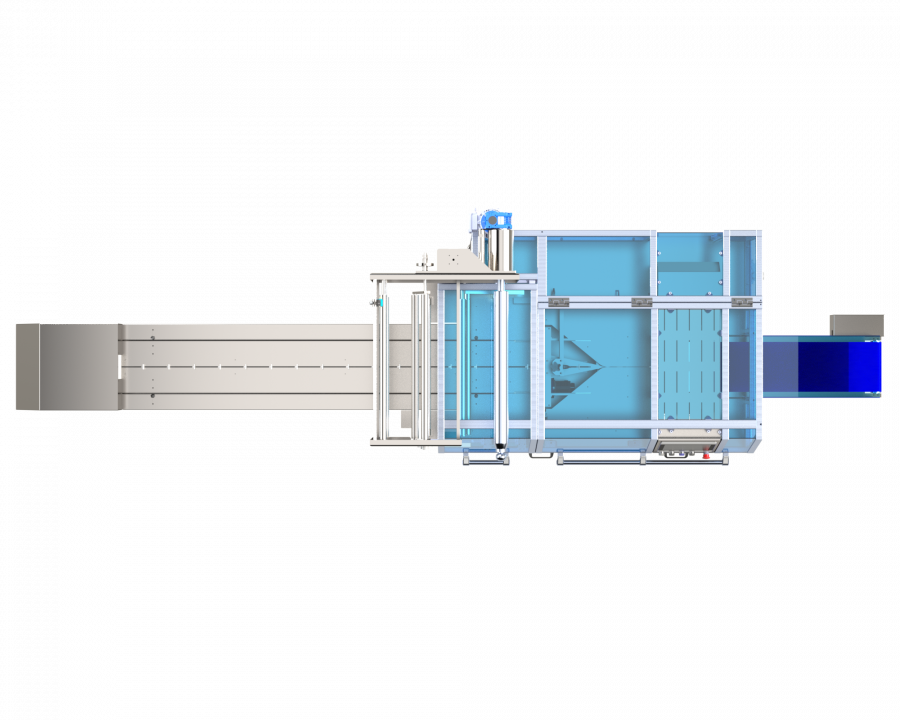

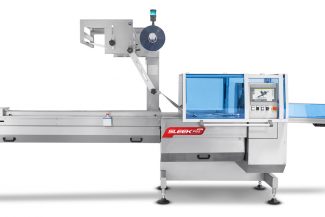

SLEEK F65

The heavy-duty SleekWrapper 65 horizontal wrapping machine is designed with ith reliability, simplicity and serviceability in mind. Built for a 24/7 environment, this machine will produce up to 220 packages per minute (subject to jaw configuration and product size) with a large maximum web width of 25.6 inches or 650mm.

The Sleek 65 features quick, easy changeover and adjustment that minimizes product and film waste and reduces maintenance costs. Five servo-driven motors assure precise positioning with smooth acceleration and deceleration.

This machine comes standard with stainless steel frame construction, user-friendly color touchscreen, automatic open/close rotary fin wheel assembly, rotary seal jaws with jam detecting logic and the ability to preprogram and store product settings.

Sleek F65 Video Library

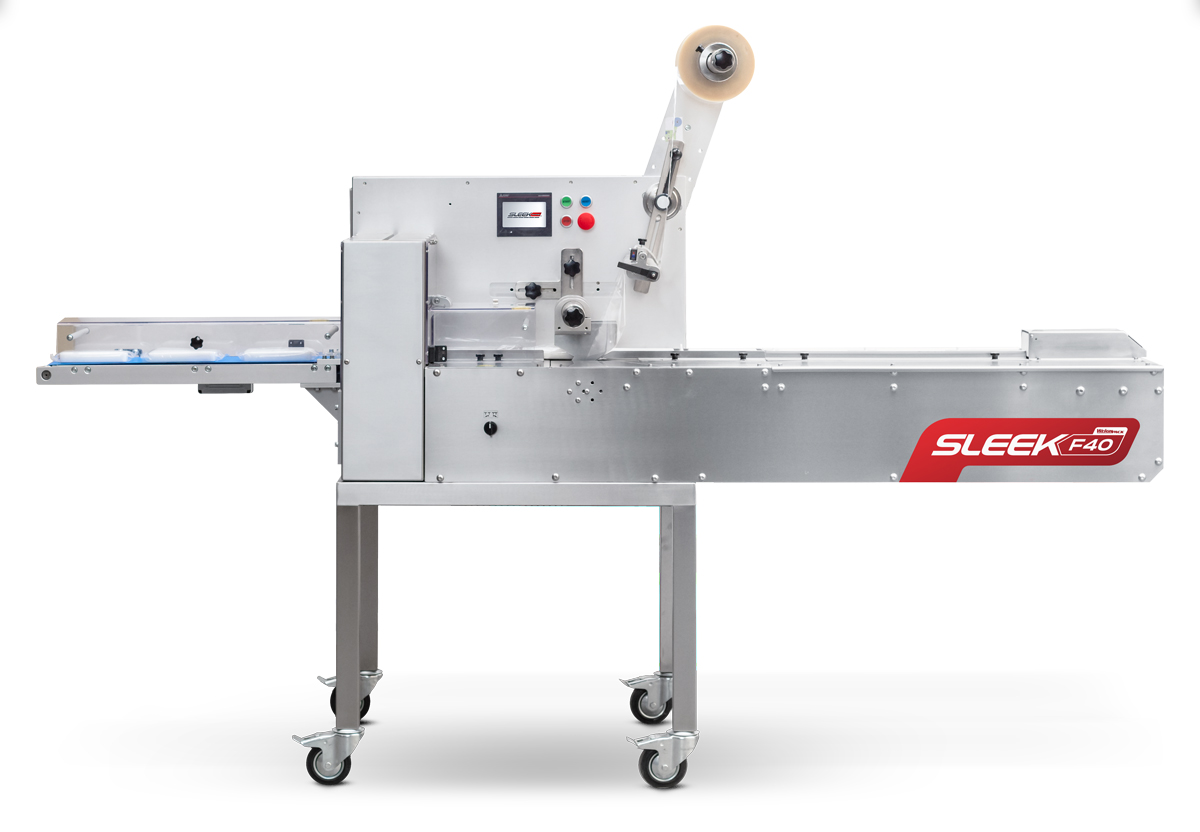

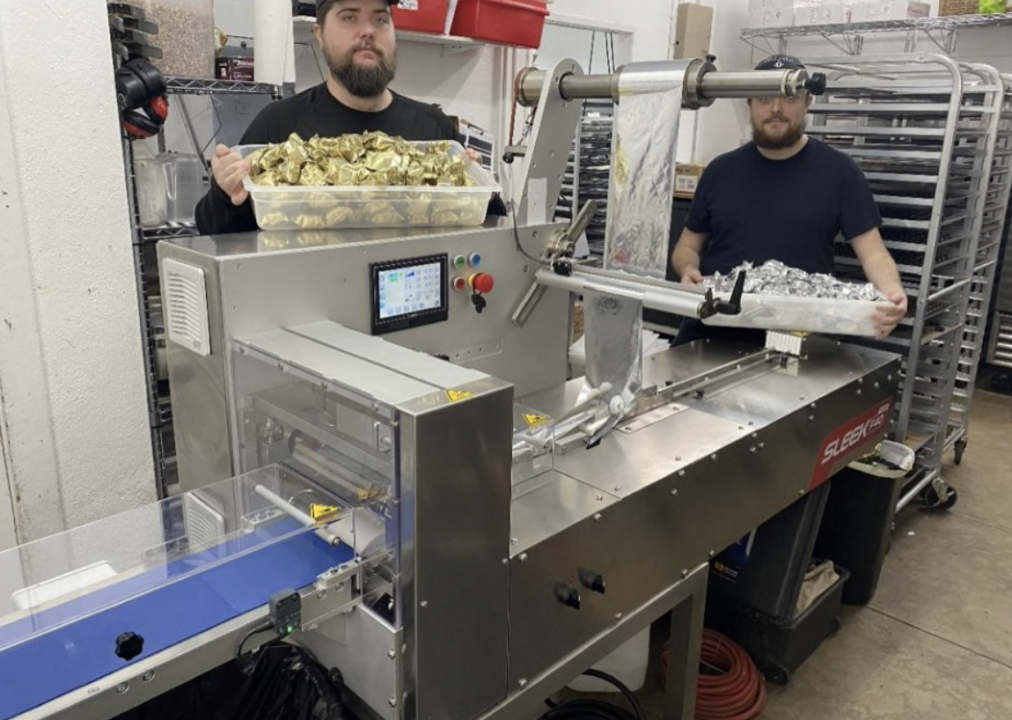

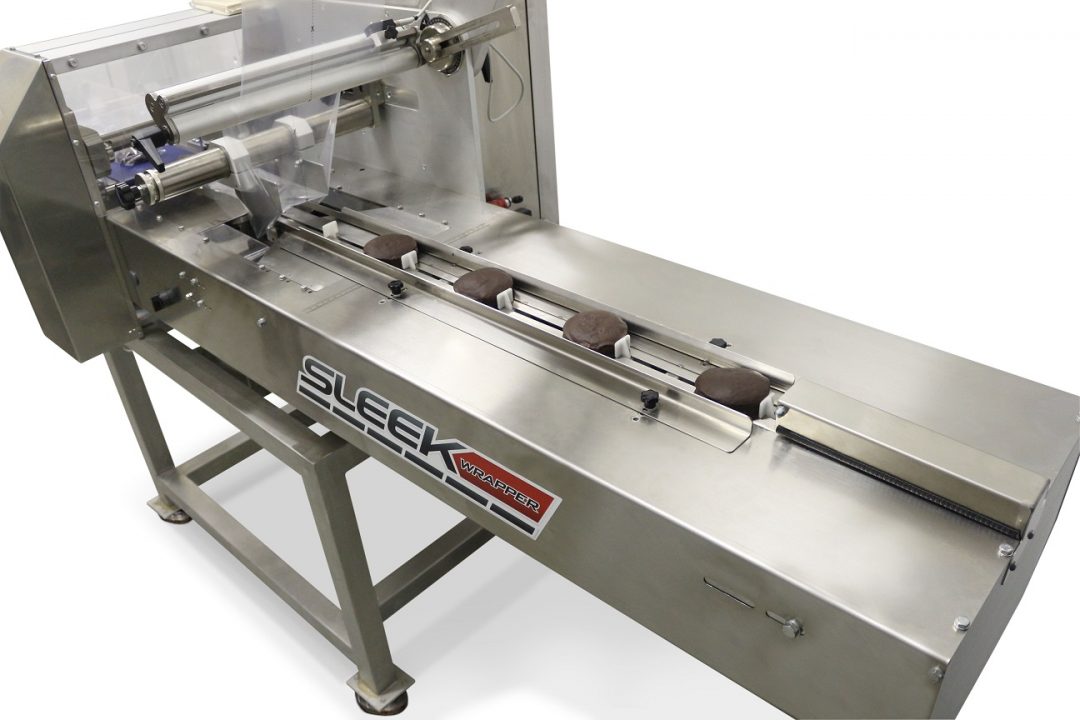

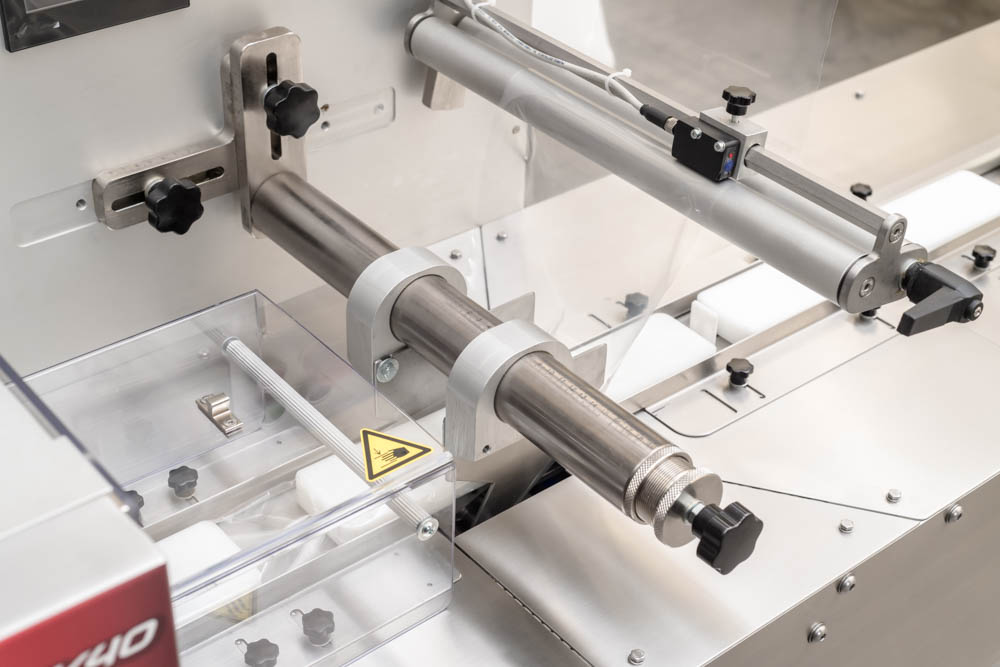

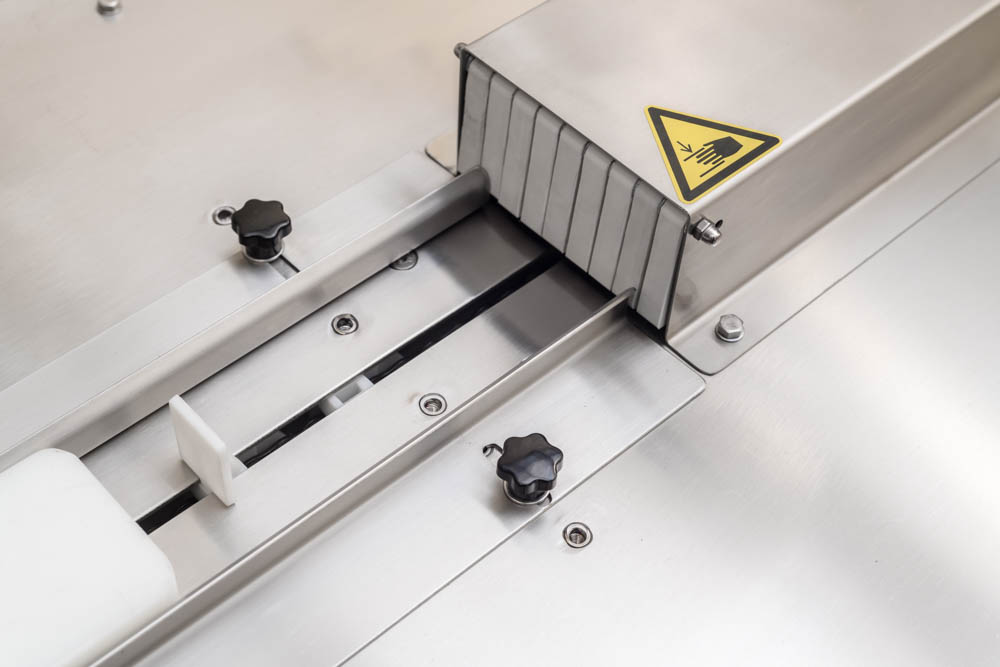

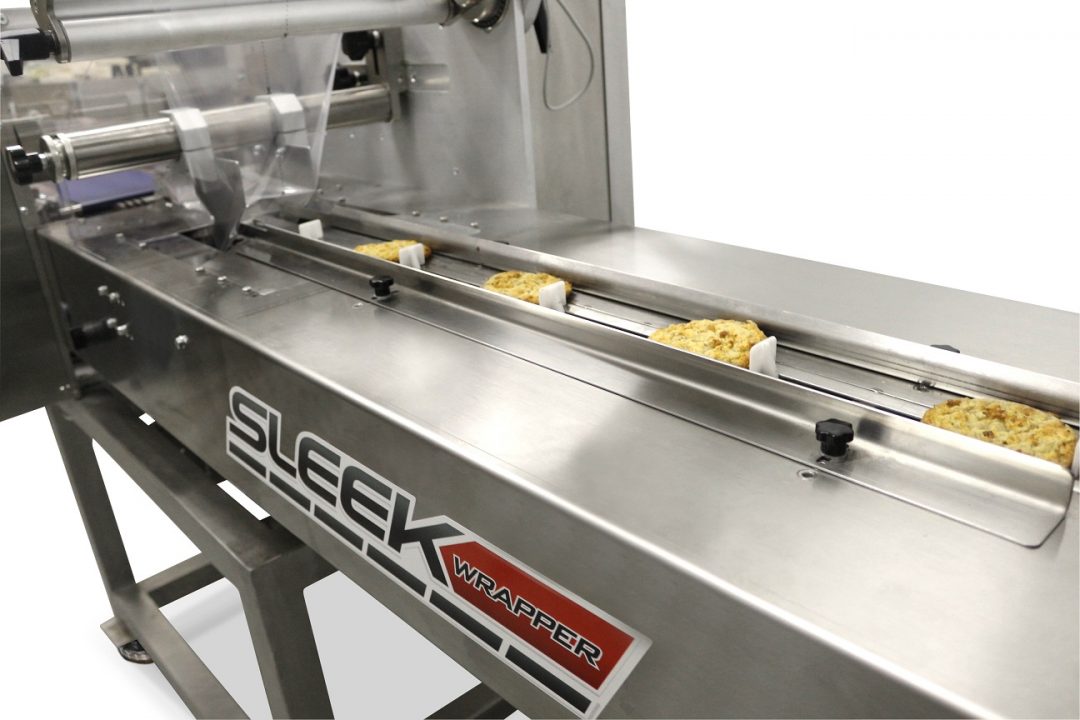

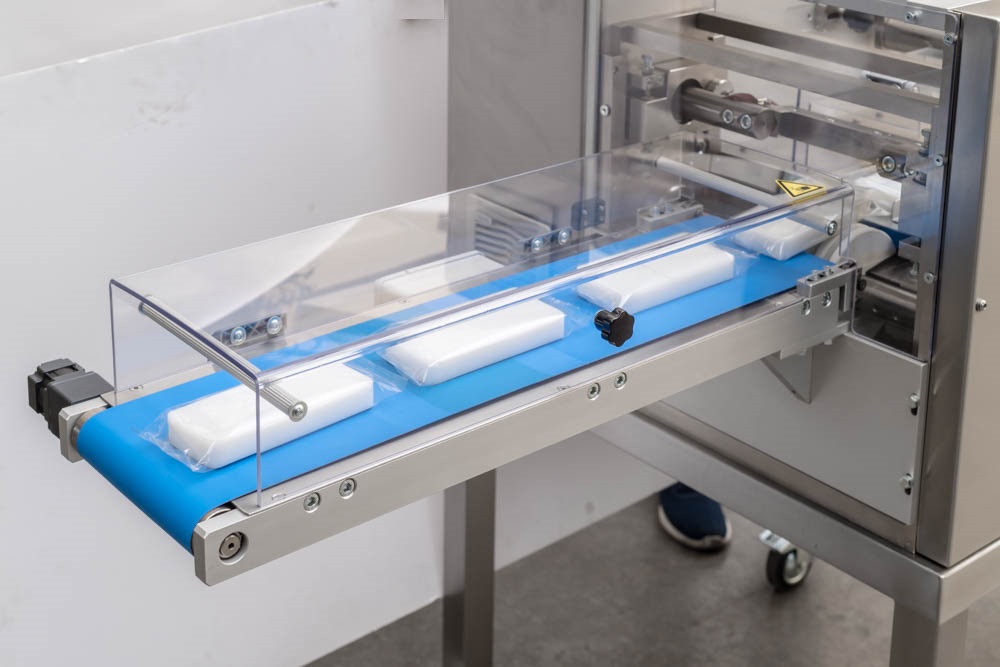

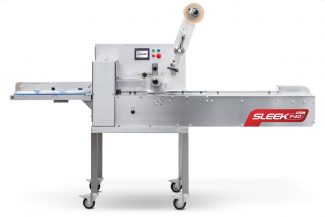

SLEEK 40

The SleekWrapper 40 horizontal wrapping machine is designed with reliability, simplicity and serviceability in mind. This machine will produce up to 120 packages per minute with a maximum web width of 15.5 inches or 400mm. The Sleek 40 features quick, easy changeover and adjustment that minimizes product and film waste and reduces maintenance costs. Four servo-driven motors assure precise positioning with smooth acceleration and deceleration.

Our machines come standard with stainless steel frame construction, user-friendly color touchscreen, automatic open/close rotary fin wheel assembly, rotary seal jaws with jam detecting logic and the ability to preprogram and store product settings.

Sleek 40 Video Library

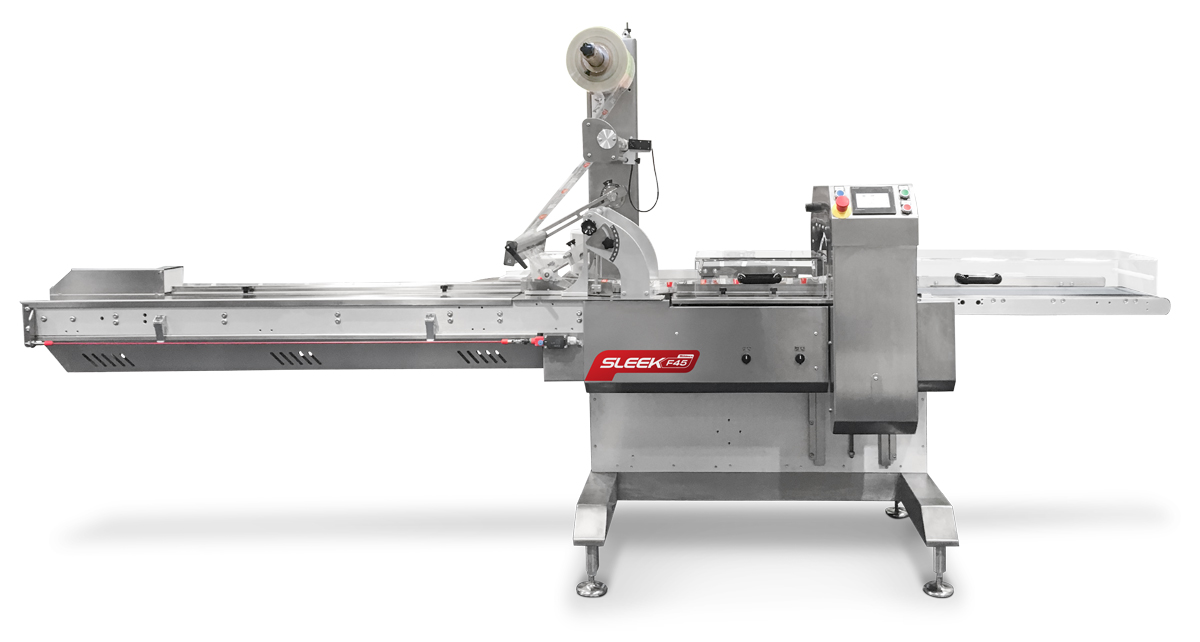

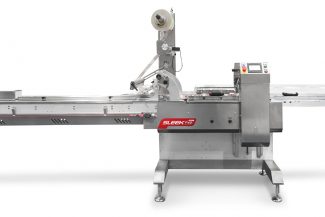

SLEEK 45

The high-speed SleekWrapper 45  horizontal wrapping machine is designed with reliability, simplicity and serviceability in mind. This machine will produce up to 160 packages per minute (subject to jaw configuration and product size) with a maximum web width of 18 inches or 450mm.

The Sleek 45 features quick, easy changeover and adjustment that minimizes product and film waste and reduces maintenance costs. Multiple servo-driven motors assure precise positioning with smooth acceleration and deceleration.

This machine comes standard with stainless steel frame construction, user-friendly color touchscreen, automatic open/close rotary fin wheel assembly, rotary seal jaws with jam detecting logic and the ability to preprogram and store product settings.

Sleek45 Video Library

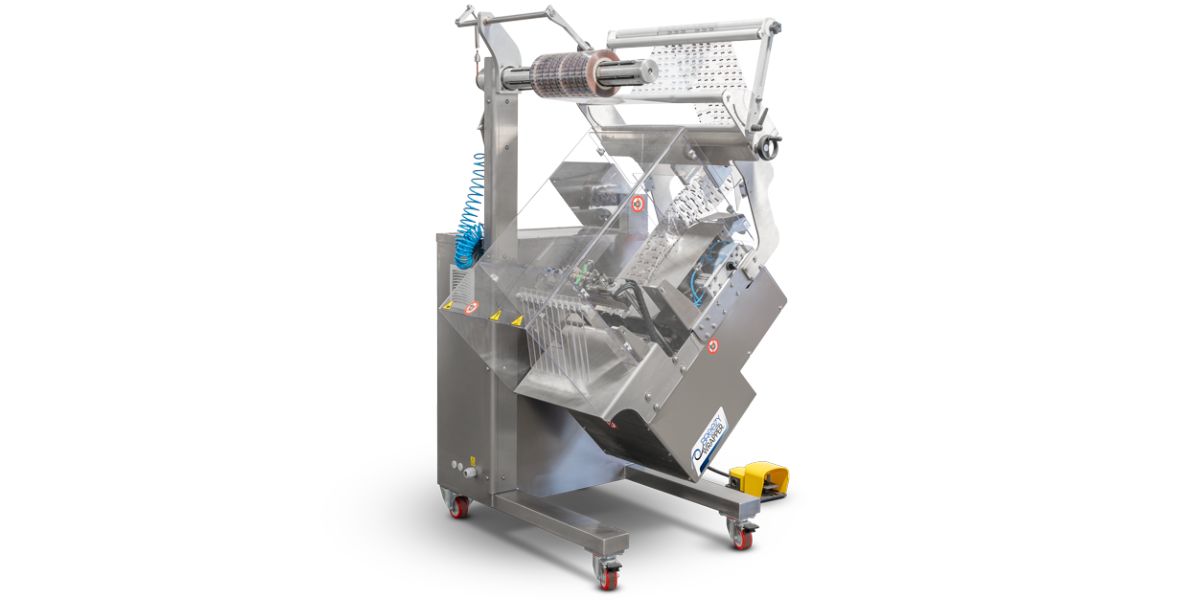

BREEZY

The Breezy Bagger is specifically designed to combine horizontal flow wrapping and vertical bagging in one compact machine. This machine is truly unique in the industry.  It offers extreme versatility with its pivoting feature that can be used for applications ranging from institutional packaging, school meal kits and home-delivered meal kits to packaged fruits, vegetables, snack foods, baked goods, home goods and hardware.

In the vertical position, it is perfect for automatic bagging and product loading.
In the horizontal position, it is perfect for products requiring overwrapping such as trays and containers.

Standard features include a unique length detection sensor and operational logic that adjusts the bag film to the length of the product during each cycle and creates the bag accordingly. The benefit to the user is material cost savings and the ability to fill products that vary in length and bulk density.

This compact automatic bagging machine provides a quick return on investment as productivity rapidly increases, product waste rapidly decreases and labor savings are realized.

Breezy Bagger Video Library

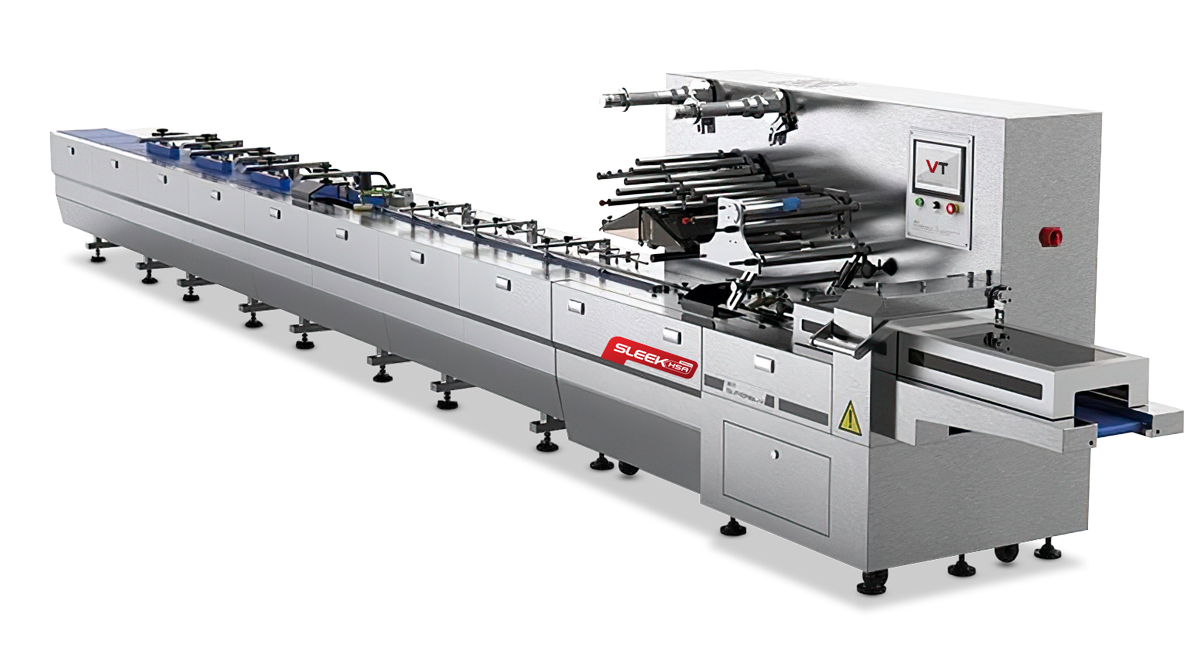

SLEEK HSA – CHICANE PRODUCT ALIGNER

The SleekWrapper HSA with chicane product aligner high-speed flow wrapper is engineered to accurately load, align and wrap product according to your project specifications. This reliable system can wrap up to 300 packages per minute and is perfect for wrapping candies, chocolates and baked goods such as cookies and brownies while remaining easy to operate and maintain.

Standard features include a photoelectric automatic detection and servo dosing system, stainless steel frame construction and a 10-inch touchscreen. A second film roll can be added upon request.

Sleek HSA Video Library

SLEEK HSB

The SleekWrapper HSB high-speed bowl wrapper is engineered to wrap up to 400 product pieces per minute in round slice, ball, ellipse, waist round, cylindrical and block shapes. Designed for accuracy and precision at higher speeds, this machine is perfect for efficiently wrapping tablets, hard candy and semi-soft sanded candy in a variety of film types.

Standard features include a photoelectric automatic detection and servo dosing system, stainless steel frame construction and a 10-inch touchscreen. A second film roll can be added upon request.

Sleek HSB Video Library

SLEEK DTA

The SleekWrapper DTA high-speed double-twist wrapper with integrated product aligner is engineered to accurately load, align and wrap up to 350 pieces per minute in square, rectangle, trapezoid and hemicycle shapes. Designed with reliability in mind, this integrated system will efficiently wrap your candies and chocolates in the distinctive double-twist style.

Standard features include a photoelectric automatic detection and servo dosing system, stainless steel frame construction and a 10-inch touchscreen. A second film roll can be added upon request.

Sleek DTA Video Library
