Bag Inserting & Uncuffing

Fully automate your bulk bagging process!

We have the solution for bagging your bulk quantities of pet food, frozen food, snacks, wrapped candy and much more with this workhorse system.

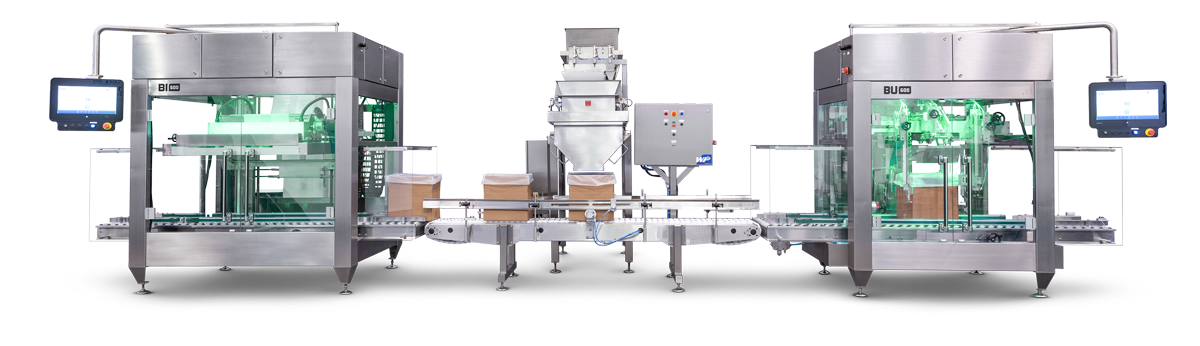

Beginning with our Boxxer case erector to form the case, our BI 600 bag inserter then dispenses film on a roll, cuts, seals and inserts the bag into the case. Once the product is weighed and filled, using a V25 bulk weigh filler in this case, the case then passes to the BU 600 bag uncuffer. The bag is then uncuffed from the case and folded over the product prior to passing to our EZ Tape case sealer. Bag sealing and vacuum assemblies are also available.

This system can be easily matched up with our Z.Zag robotic palletizer to fully automate your bulk bagging line.

BI 600

Parts Description
Box/Tray Length 300 – 610mm
Box/Tray Width 200 – 410mm
Box/Tray Height 250 – 650mm
Film Roll Max Width 650mm
Film Roll Max Diameter 510mm
Film Roll Thickness 1 – 4mil
Tubing Roll Film Width box/tray length + 16 mm
Tubing Roll Film Gusset box/tray width + 45 mm
Tubing Roll Film Fold-Over 140 – 180 mm

Features

• 304 stainless steel frame
• SMC pneumatics
• Omron servo with absolute encoders
• Hiwin linear bearings
• Impulse sealing for leakproof polyethylene or laminated bags
(1 sealing line, 2-sided active sealing wire)
• V-shaped guillotine knife
• Caseflapholders
• Adjustment indicators
• Light stack – Audible with multicolor

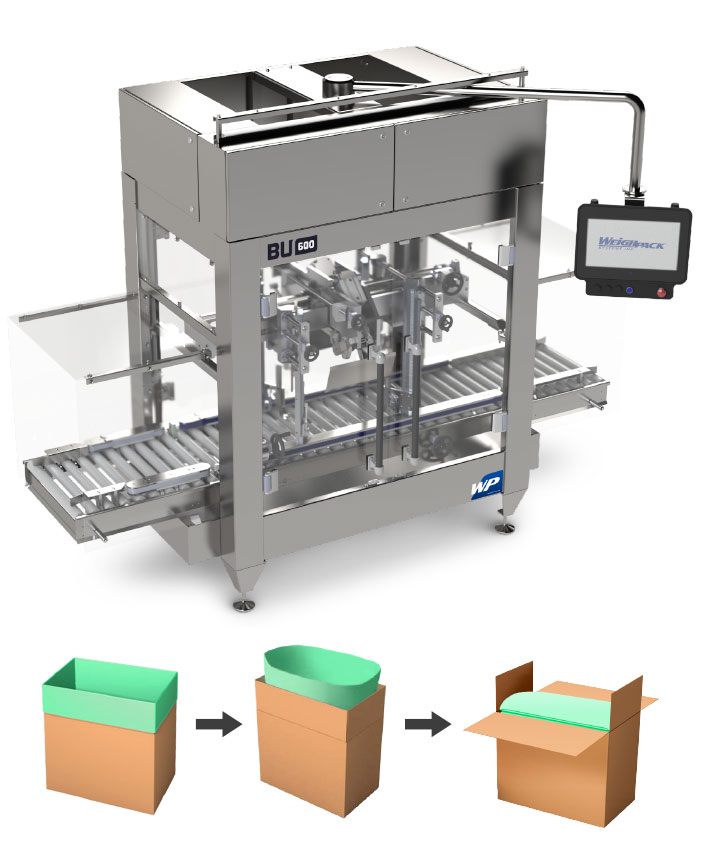

BU 600

Parts Description
Box/Tray Length 300 – 610mm
Box/Tray Width 200 – 410mm
Box/Tray Height 250 – 650mm
Recommended Bag Fold-Over 300 – 610mm
Film Roll Max Diameter 510mm
Film Roll Thickness 1 – 4mil
Tubing Roll Film Width box/tray length + 16 mm
Tubing Roll Film Gusset box/tray width + 45 mm

Features

• 304 stainless steel frame
• SMC pneumatics
• Omron servo motors with absolute encoders
• Hiwin linear bearings
• Case lap holders
• Adjustment indicators
• Bag folding device
• Light stack – Audible with multicolor
