Our Primo™ family of automatic weigh filling solutions are designed for weighing and dispensing of a wide variety of products including food, pharmaceuticals, chemicals, industrial goods, hardware and more.
We offer solutions for all production needs, accuracy requirements, space constraints and budgets.
Weigh and fill from as little as 1 gram to 50 lbs with filling rates from 5 to 200 per minute.
|Model||Bucket Volume||Maximum Weight||Available Weight Cell Configurations||Minimum Cycles per Minute||Maximum Cycles per Minute|
|PrimoCombi Small Bucket||0.5 L||454g / 1 lb||14, 24||10||150|
|PrimoCombi Medium Bucket||2.5 L||4.5 kg / 10 lbs||10, 14, 16, 24||10||150|
|PrimoCombi Big Bucket||5 L||11.5 kg / 25 lbs||10 , 14||5||60|
|PrimoLinear V-mini||200 ml||200g / 7 oz||4||5||40|
|PrimoLinear V-5||5 L||2.25 kg / 5 lbs||1,2,3,4||2||40|
|PrimoLinear V-25||25 L||23 kg / 50 lbs||1, 2||1||16|
|PrimoLinear C-10||10 L||4.5 kg / 10 lbs||1, 2||2||14|
|PrimoLinear C-25||25 L||23 kg / 50 lbs||1, 2||1||12|
MULTI HEAD WEIGH FILLING

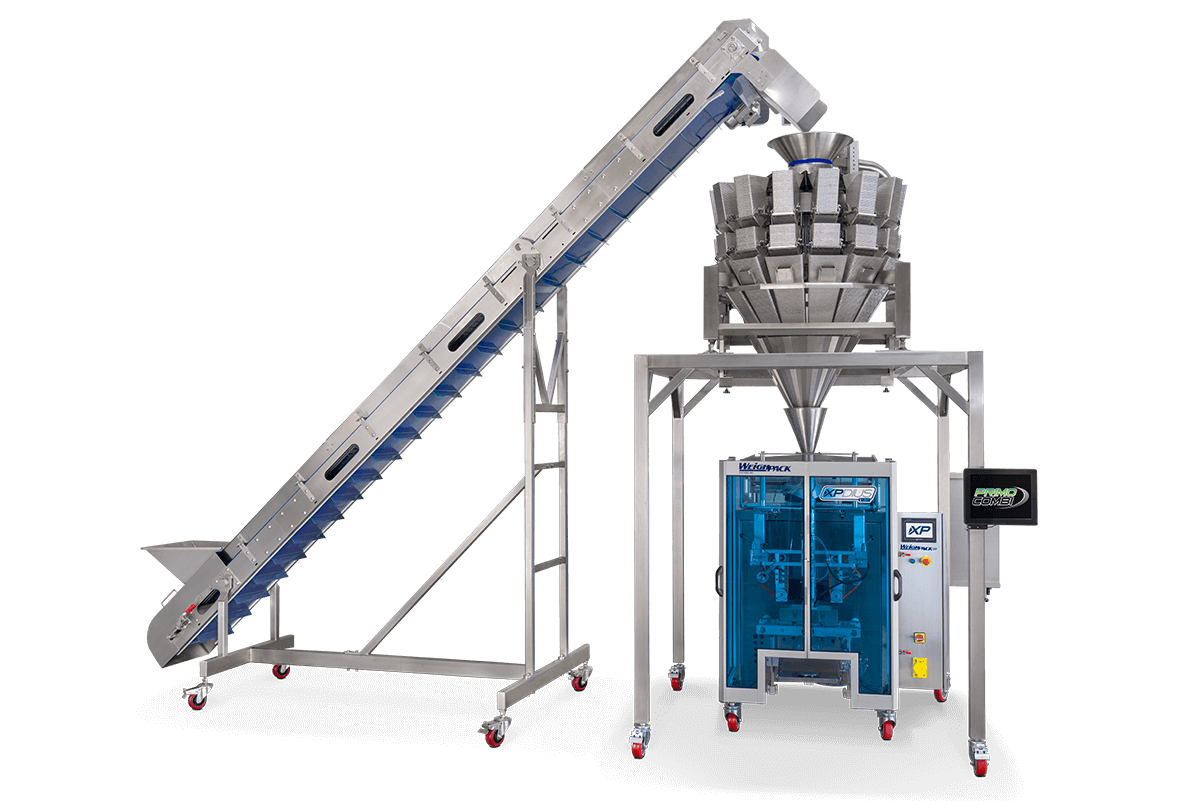

The PrimoCombi multihead weigher family of combination scales are commonly used when applications require the highest accuracy and over all throughput.
Offered in 10, 14, 16 and 24 head configuration, each head (or lane) includes a dedicated load cell. The process starts by filling the center of the PrimoCombi scale with bulk product; product will then vibrate from the center cone to the individual vibratory feeder pans. These feeder pans will then transport product to the weigh bucket where it will be weighed and measured. Once weighed, the PrimoCombi’s PC will determine which buckets equal a near perfect match, once that match is chosen it is then locked and the buckets will dispense at the same time to the automatic packaging machine or a person manually packaging.
VIBRATORY NET WEIGH FILLING

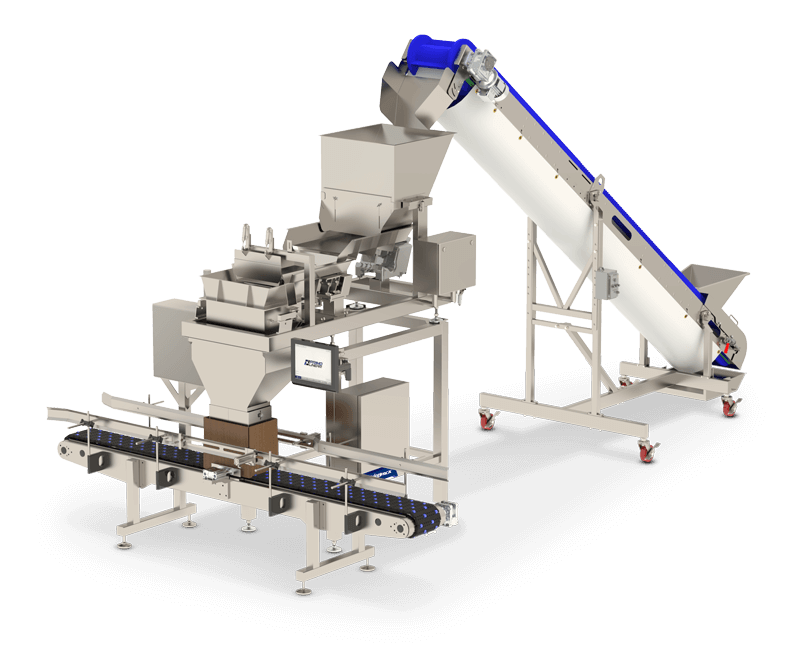

The PrimoLinear™ automatic net weigh filling machine is designed to accurately dispense and fill a wide range of products into bags, cartons, trays, boxes, jars and containers.
Designed for mid range production needs, the PrimoLinear includes a stainless steel frame, tool-less tilting hopper that requires no change-over when running multiple applications; tool-less removable contact parts, and standardized components that reduce maintenance costs.
The PrimoLinear can accurately weigh, dispense and package nuts, snack foods, candy, hardware, frozen foods, vegetables, fruits, meat, poultry, ingredients, spices, coffee, powders, granules, pet food and much more.
CONVEYORIZED NET WEIGH FILLING

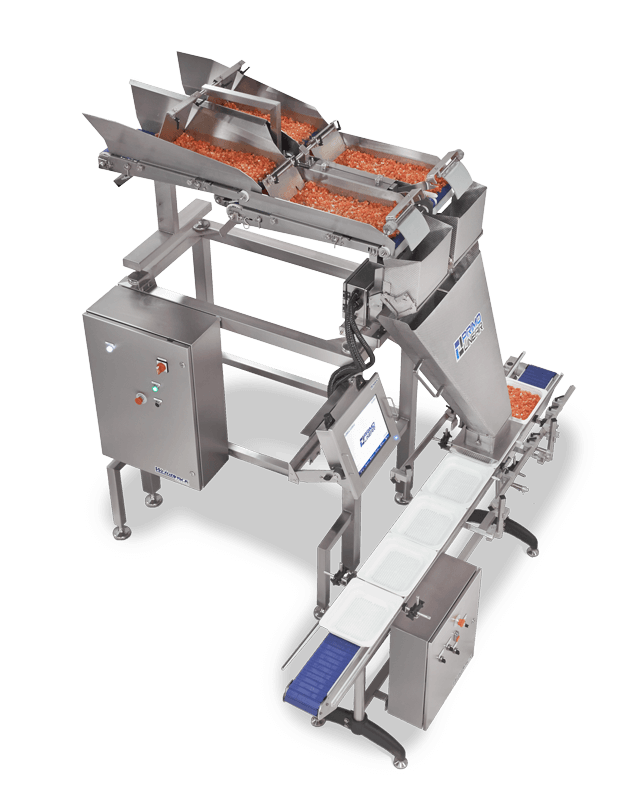

Engineered for sticky products applications where only a conveyor can successfully transfer products into the weigh bucket, the PrimoLinear C-series is great for fresh vegetables, fruit, cheese, meat, poultry and much more.
Our conveyorized net weigh filling machines are designed for both retail and bulk weights, ranging from 5 grams to 50 lbs.
Models are available in single and twin lane configurations depending on the speeds you require.
BULK WEIGH FILLING FOR LARGE FORMATS

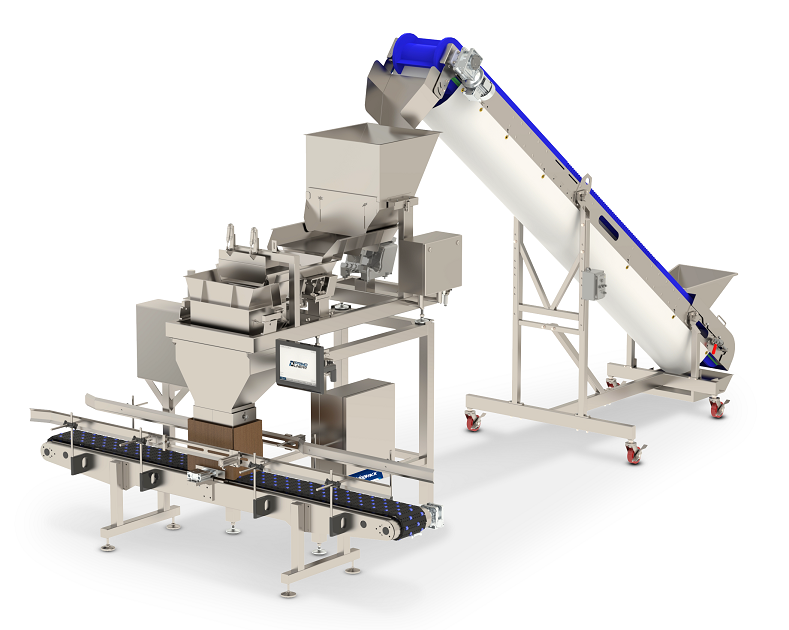

Automatically fill cases and totes with the V and T series bulk filling machine. The robust V (vibratory) and T (tote filling) 25 model automatic weigh filling machines are engineered for large format filling applications.
From 5 lbs to 50 lbs, the PrimoLinear is perfect for wholesale, institutional and food service requirements. Common packaging applications include weigh filling chocolates, candy, frozen foods, vegetables, fruits, baked goods, snack foods, ingredients, chemicals and much more.
